Specifications

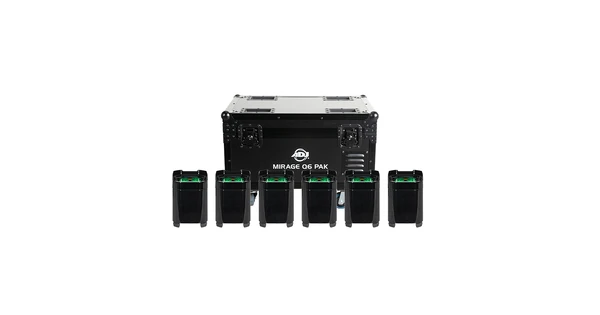

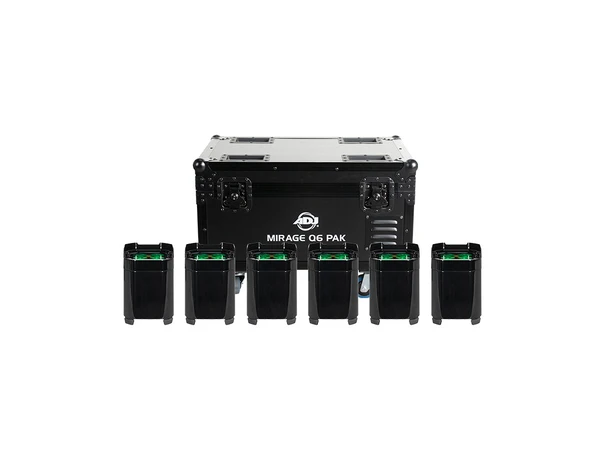

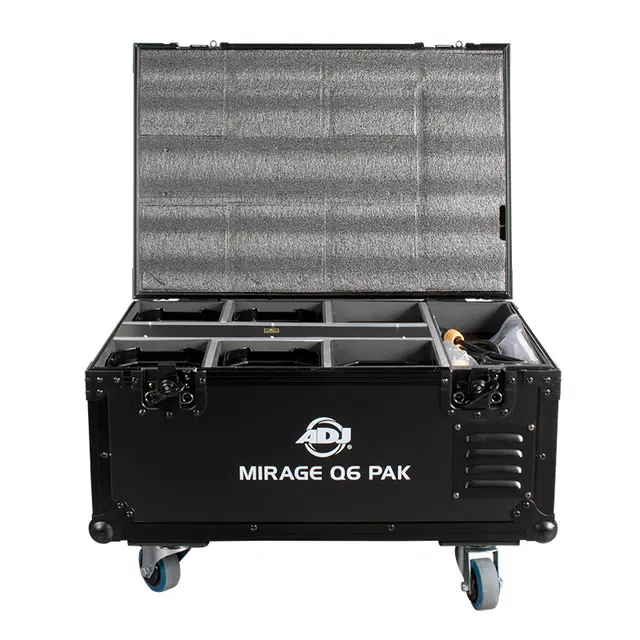

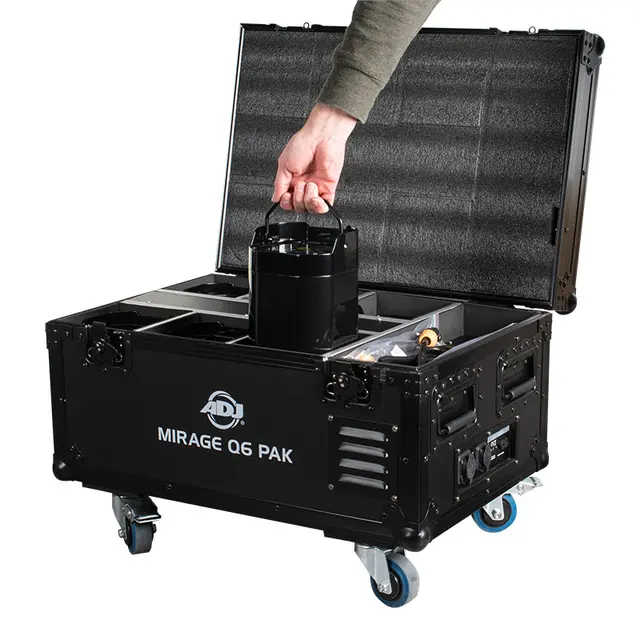

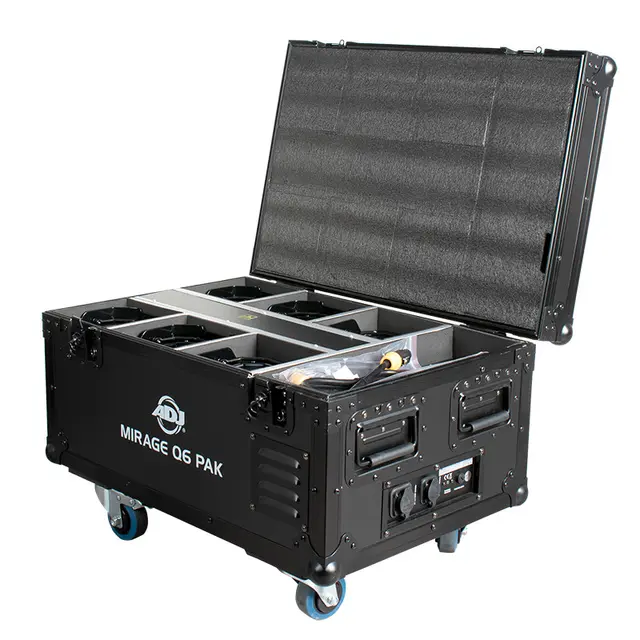

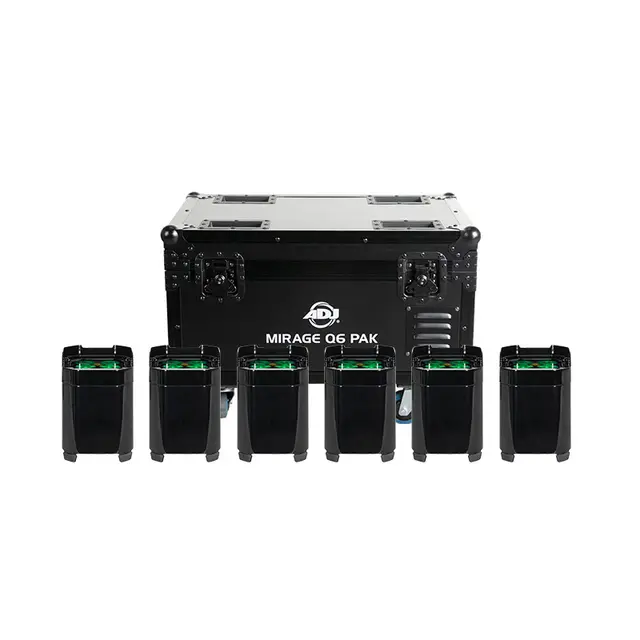

Mirage q6 Pak includes:
• (6) MIRAGE Q6 IP Black Fixtures

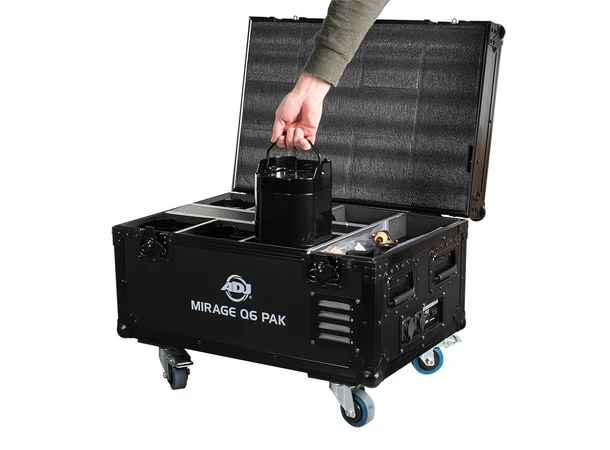

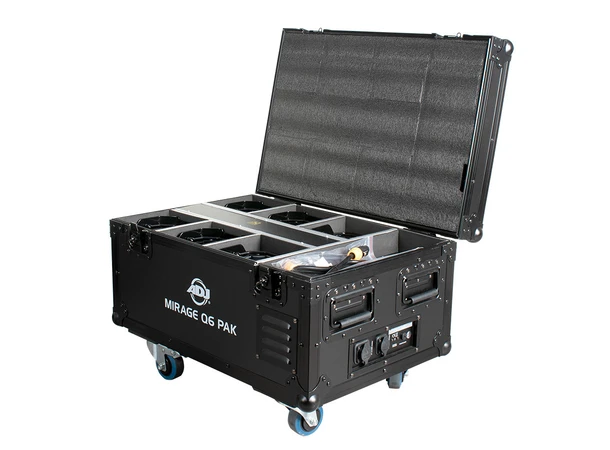

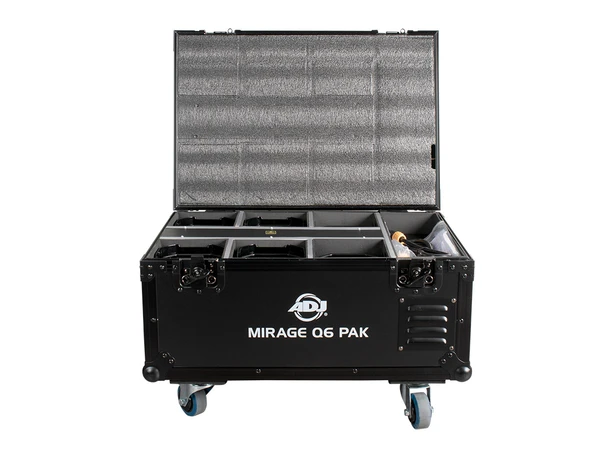

• (1) MIRAGE Q6 FC Flight Case
• (6) MIRAGE Q6 IPCB Charging bases and power supplies
• (1) UC-IR Wireless Infrared Controller
• (1) IP65 Locking Power Cable
Mirage Q6 Pak Features:

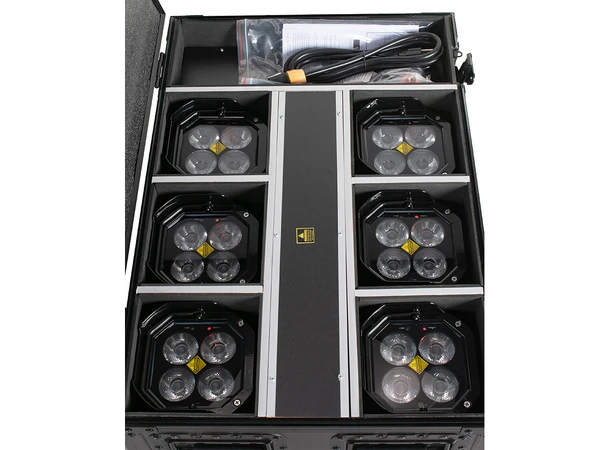

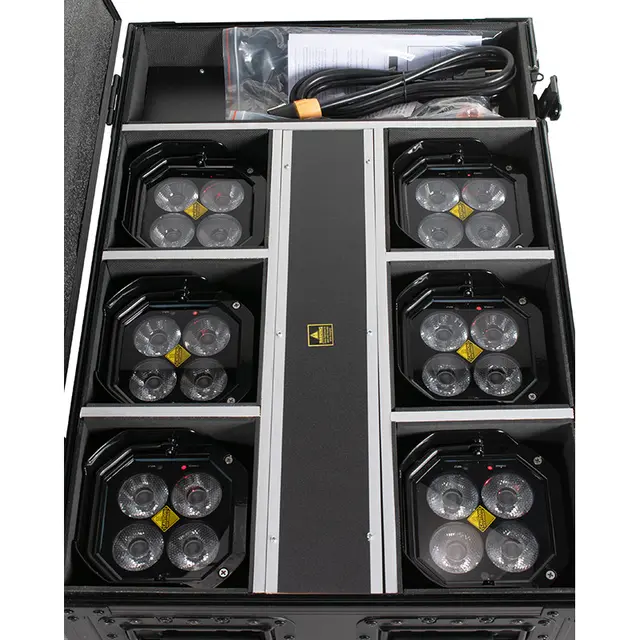

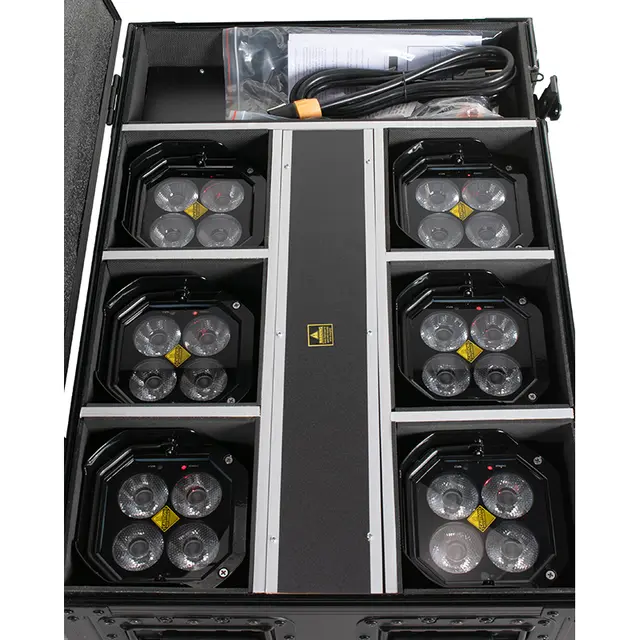

• Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures
MirageQ6 Pak Dimensions & Weight (with 6 fixtures):
• Length: 26.4” (671mm)
• Width: 18.2” (461mm)
• Vertical Height: 18.1” (459mm)
• Loaded Weight: 97.9 lbs. (44.4 kg)
Pak Electrical & Thermal:
• Power Input: AC100VAC~240VAC, 50/60Hz
• IP65 Power Locking Input and Output
• Max Power Consumption: 400 Watts
• Power Draw: 4A
• Charge status indicator
• 14°F to 113°F (-10°C to 45°C)
MIRAGE Q6 IP BLACK FIXTURE
Source:
• 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
• 50,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometrics:
• LUX: 9903 @ 2M; 2303 @ 4M
Optics:
•11-degree beam angle
Control & Connections:
• Control protocol: WiFLY EXR Wireless DMX
• 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
• Remote control: WiFLY EXR DMX, UC-IR24 (Included)
• 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 color/fade combo mode); Static Color mode; and Wireless DMX Control
• Contact Charging system. 6x Charging bases and power supplies included in flight case
Features:
• IP65 Outdoor Rated
• Built-in kickstand to angle fixture when sitting on the floor
• 4-touch button OLED display on rear panel
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
• Battery Transceiver
• 64 built-in Color Macros

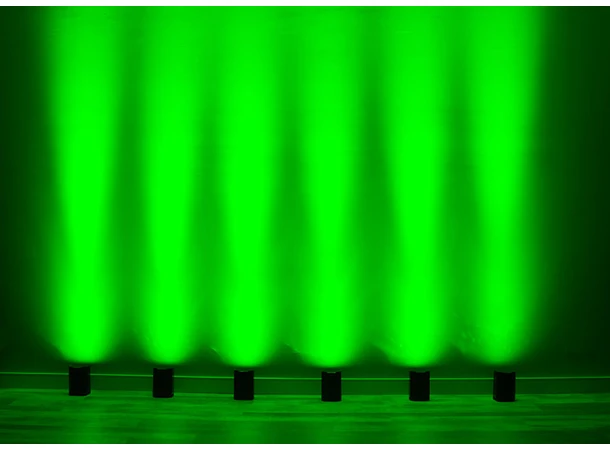

• Variable RGBA color mixing offers a smooth, seemingly unlimited color palette - Great for Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
• Run all night – No duty cycle
• Energy Save Mode
• Built-in alarm system with On/Off
• Battery charge indicator on each fixture
• Die-cast aluminum housing
Battery:
• Battery Type: Fixed lithium battery
• Battery Energy: 162.8WH (Watt Hours)
• Battery Weight: 0.84 kg.
• Battery Voltage: 14.8V
• Battery Capacity: 11000mAh (Typical Capacity)
• Total Lithium Ion Cells: 20 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 7 Hours
• Battery Life: 14 hours (When color changing in Battery Saver Mode 14); 40 hours (When set to a single color in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
Dimensions & Weight:
• Length: 143.2mm
• Width: 143.2mm
• Vertical Height: 211mm
• Weight: 4.01kg
Electrical & Thermal:
• Power Input: DC 17.3V
• Power Draw: 2A
• 40W Max Power Consumption (each unit)
• -10°C to 45°C
