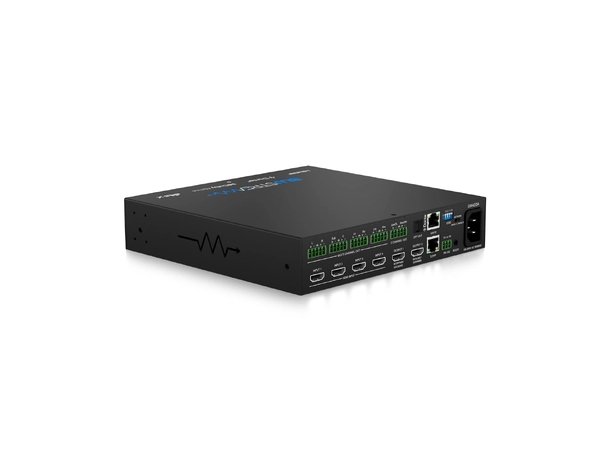

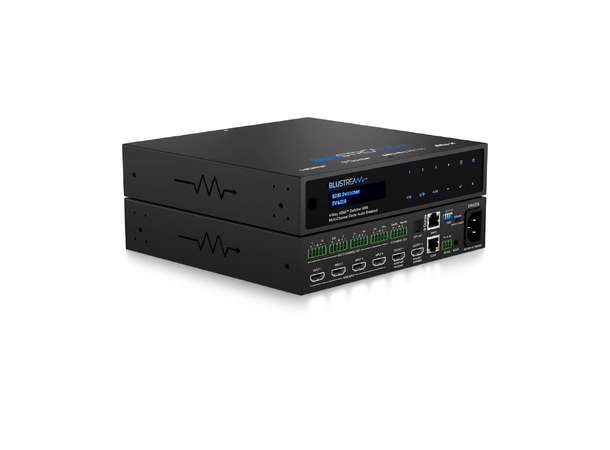

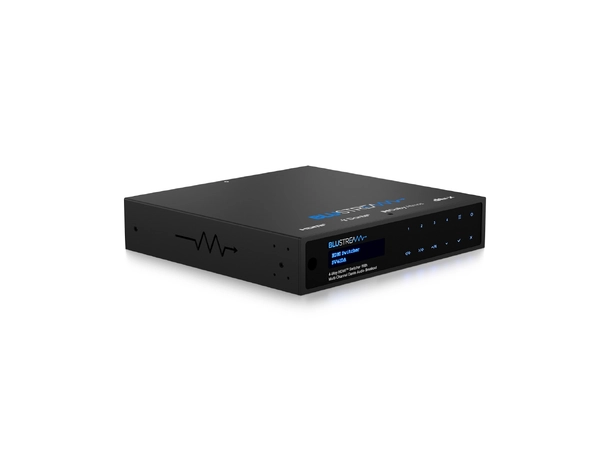

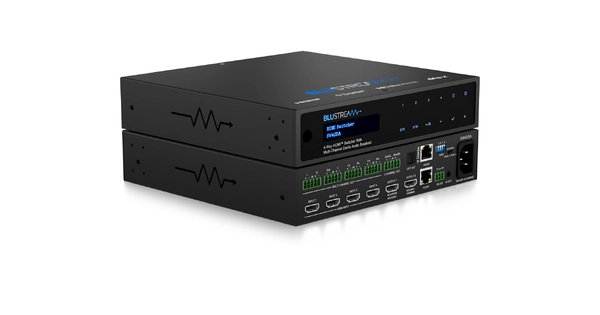

SW42DA

4-Way HDMI Switcher With Multi-Channel Dante® Audio Breakout

Description

The Blustream SW42DA is a 4-Way HDMI switch that has been designed to convert and downmix embedded Dolby Audio or DTS Audio within an HDMI switching environment. HDMI audio capabilities include the selection and manipulation of formats across both multichannel and 2ch downmixed Dante® digital signal, optical, multichannel and 2ch downmixed balanced/unbalanced analogue audio, and HDMI outputs.

The SW42DA will pass native video and multichannel audio to compatible equipment, with a second HDMI output featuring selectable video down-conversion of 4K 60Hz 4:4:4 video down to 1080p, with embedded native or down-mixed 2ch audio as required.

The SW42DA provides an advanced, but cost-effective solution for ensuring that 4K UHD video and multichannel audio can be distributed around a Dante® multi-room system where there are a mixture of 2ch and/or 7.1ch zones or 7.1.2/5.1.4 (9.1ch) audio, with multiple output resolution requirements.

Key Features

• 4 x HDMI inputs that can be switched to the dual HDMI outputs
• Supports HDMI 2.0b 18Gbps specification including 4K 60Hz 4:4:4 UHD video
• Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• HDMI output 1 replicates the HDMI input signal up to 4K 60Hz 4:4:4 and 7.1.2ch Dolby Atmos and DTS-HD audio
• HDMI output 2 features 4K video down-scaler and 7.1.2ch to 2ch Dolby Atmos and DTS-HD audio downmix
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission
• HDMI audio breakout to up to 10 channels of Dante® audio (7.1.2ch/5.1.4ch)
• HDMI audio breakout to 7.1ch balanced and unbalanced analogue audio outputs
• ARC/eARC support including breakout to 7.1ch and 2ch downmixed analogue and Dante® audio
• Configurable Dante® device latency using Dante® Controller
• Supports AES67 RTP audio transport

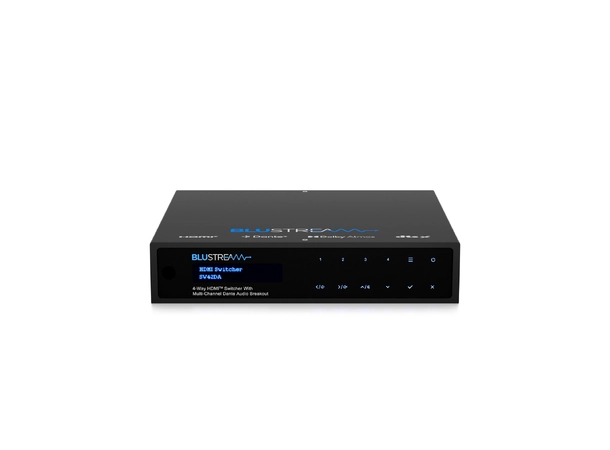

• Control via front panel, TCP/IP, web-GUI, RS-232, and IR
• HDCP 2.3 compliant with advanced EDID management

Specifications

• Dimensions (W x H x D): 220mm x 214mm x 45mm
• Shipping Weight: 2.6kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Internal 100-240v AC

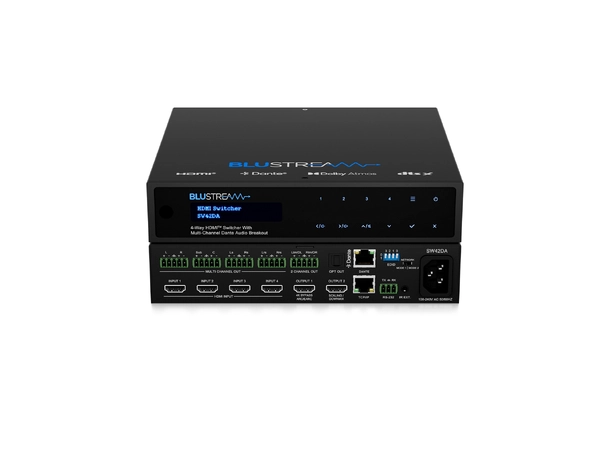

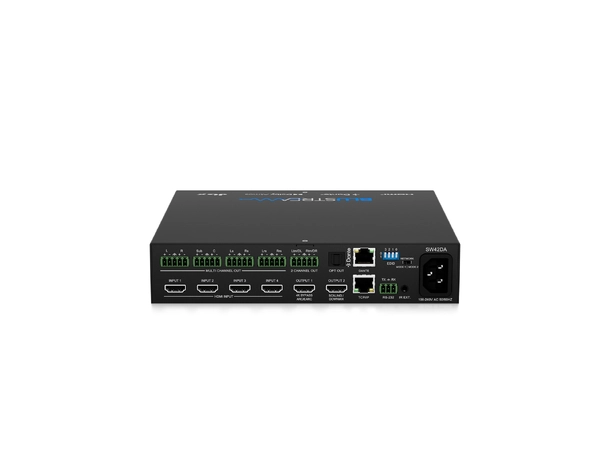

Connectivity

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x Optical (Toslink), 5 x 5-pin Phoenix connector (8ch + 2ch balanced/unbalanced analogue audio), 1 x RJ45 (100Mbps Dante® network)
• EDID: 4-PIN DIP switch
• TCP/IP Control: 1 x RJ45, female
• RS-232 Port: 1 x 3-Pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack

Package Contents

• 1 x SW42DA
• 1 x Remote Control
• 1 x IR Receiver
• 1 x 19” Rack Mounting Kit
• 4 x Feet
• 1 x Quick Reference Card
• IEC Power Cable(s)
