Description

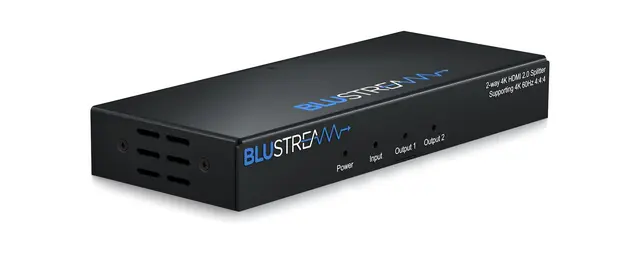

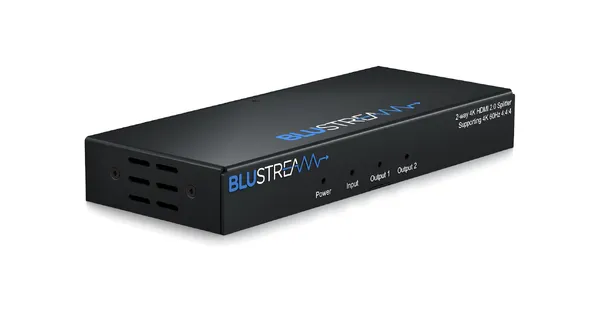

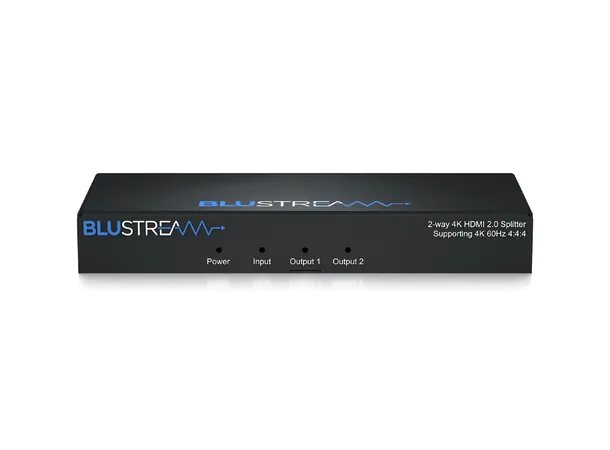

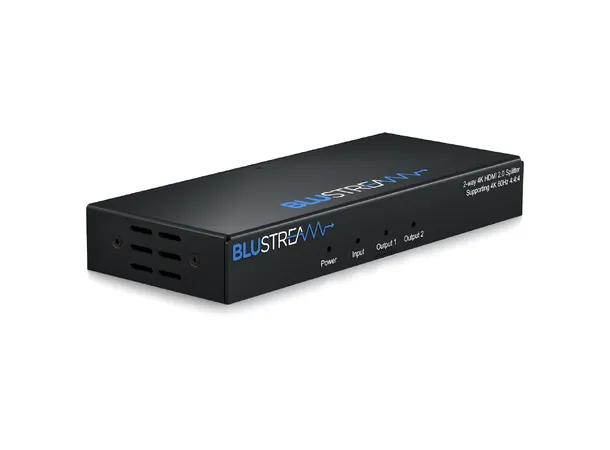

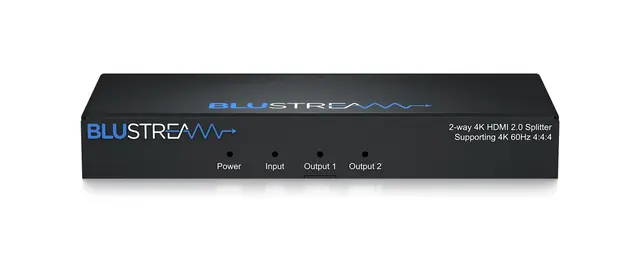

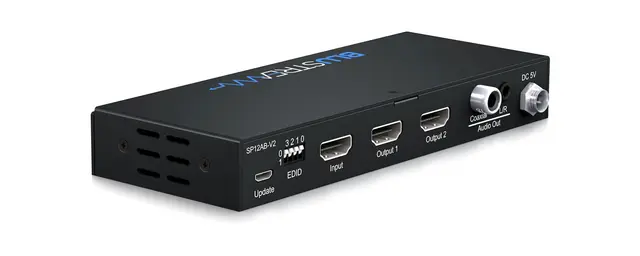

Our SP12AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SP12AB-V2
1 x 5V/1A DC Power Supply
1 x Quick Reference Guide

Key Features

• Features 1 x HDMI input that is replicated to 2x HDMI outputs

• Supports HDMI 2.0 18Gbps specification including HDR

• Supports up to 4K UHD 60Hz 4:4:4

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

• Advanced EDID management

• HDCP 2.2 Support

Specifications

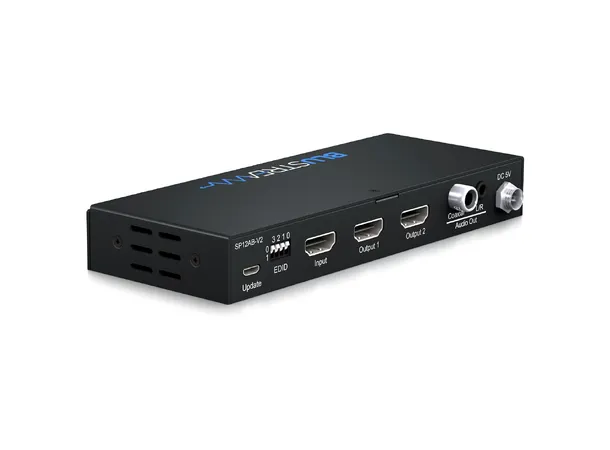

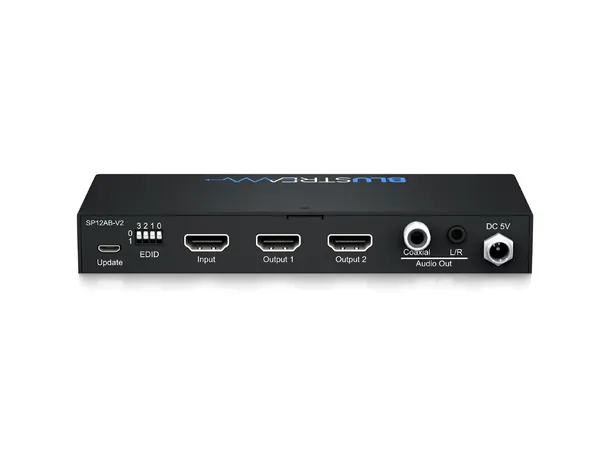

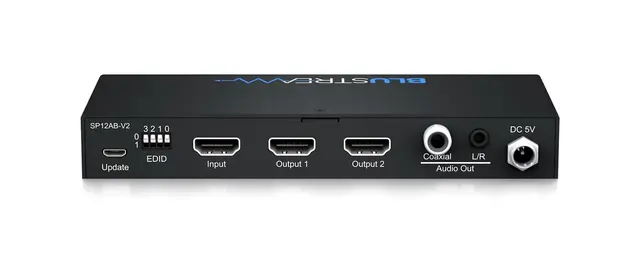

• Video Input Connectors: 1 x HDMI Type A

• Video Output Connectors: 2 x HDMI Type A

• EDID: 4-pin DIP switch

• Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analogue audio L/R (3.5mm stereo jack)

• Dimensions (W x D x H): 159mm x 64mm x 23mm , without feet

• Shipping Weight: 0.6kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC
