Description

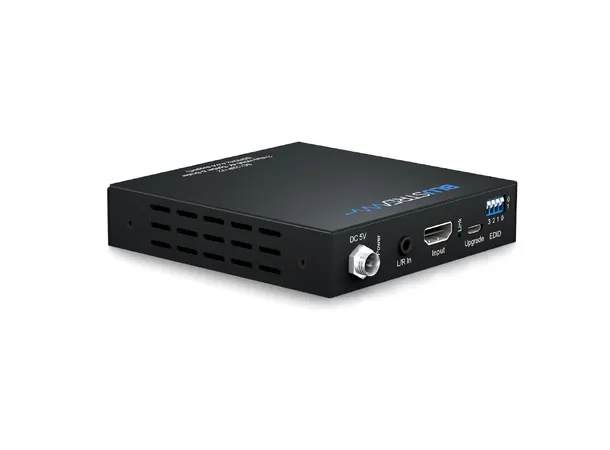

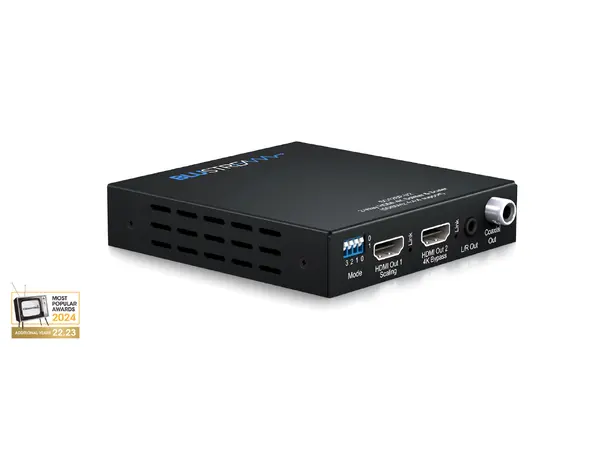

The Blustream SC12SP-V2 is a 4K HDMI 2.0 splitter with in-built scaler, designed for installations in which a single 4K video source needs to be distributed to multiple displays that support different maximum video resolutions.

The SC12SP-V2 supports down-scaling of up to 4K 60Hz 4:4:4 video to various lower resolution video formats.

The SC12SP-V2 also includes audio breakout, advanced EDID management and supports HDCP 2.2.

Box Contents

1 x SC12SP-V2
1 x 5V/1A DC power supply
1 x Mounting kit
1 x Quick Reference Guide

Key Features

• Features 1 x HDMI input that is replicated to 2 x HDMI outputs

• Supports HDMI 2.0 18 Gbps specification including HDR

• Supports up to 4K UHD 60Hz 4:4:4

• HDMI output 2 supports 4K UHD video pass-through

• HDMI output 1 will down-scale the video input to the following formats:

  - 1080p @24/25/30/50/60Hz* (for screens that do not support 4K)

  - 4K @50/60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD

• Master Audio transmission

• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

• Advanced EDID management

• HDCP 2.2 support


  * Frame rate will always match the input signal

Specifications

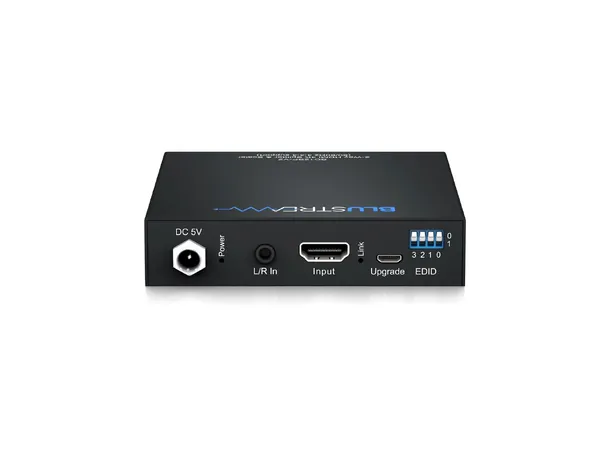

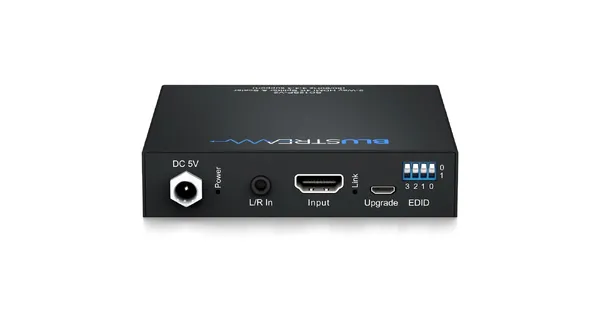

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female

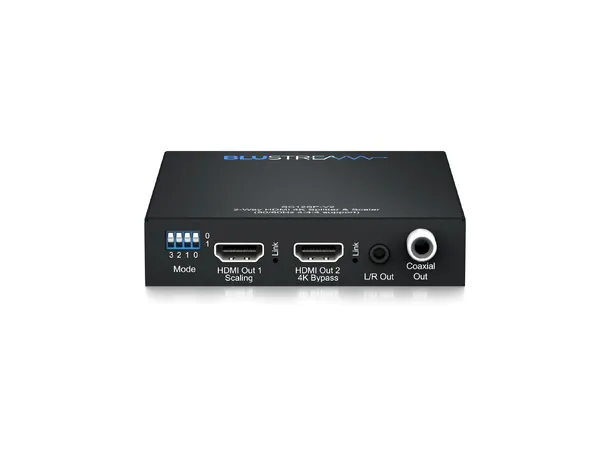

• Video Output Connectors: 2 x HDMI Type A, 19-pin, female

• Audio Output Connectors: 1 x RCA (SPDIF), 1 x 3.5mm stereo jack (L/R)

• EDID: 4-pin DIP switch

• Product Upgrade: 1 x 3-Pin Phoenix connector & 1 x Type A USB female

• Dimensions (W x H x D): 122mm x 23mm x 135mm

• Shipping Weight: 0.8kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/1A DC
