Description

Our RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 70m at 1080p (4K 18Gbps to 40m).

The Receiver features ARC support when used with compatible Blustream hardware and simultaneous analogue stereo and Optical Toslink audio breakout.

Box Contents

1 x RX70CS
1 x Mounting Kit
1 x Quick Reference Guide

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR *

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p

• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)*

• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

• Bi-directional RS-232 pass-through

• Supports bi-directional IR pass-through to compatible HDBaseT™ device

• Supports bi-directional PoC to power RX70CS from compatible Blustream HDBaseT™ transmitter / matrix products or provide power to HDBaseT™ transmitter when RX70CS is powered with local power supply

• HDCP 2.2 support

• Recommended receiver for the Blustream AMF42AU, C6CS, C88CS, HMXL66ARC and HMXL88ARC matrix products

  * Technical performance is subject to the features supported on the connected HDBaseT™ device.

Specifications

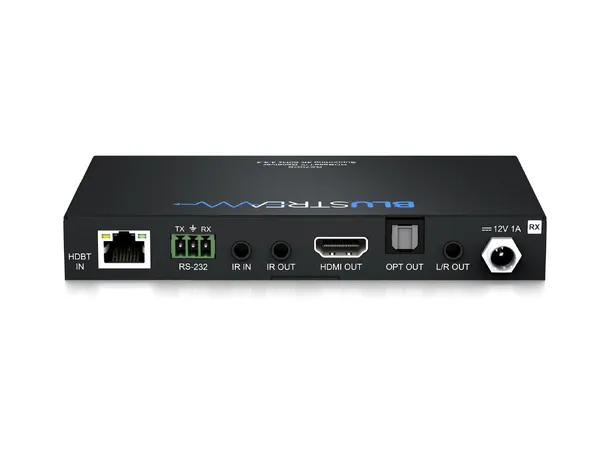

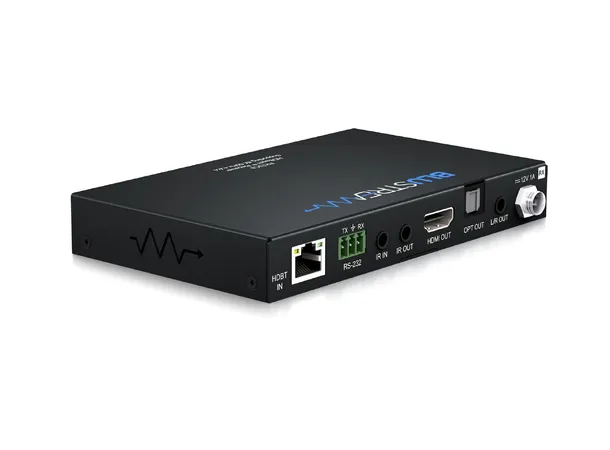

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector,

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female

• Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only

• Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only

• RS-232 Serial Port: 1 x 3-pin Phoenix connector

• IR Input Ports: 1 x 3.5mm stereo jack

• IR Output Ports: 1 x 3.5mm mono jack

• Mounting Kit: Included

• Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm

• Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm

• Shipping Weight: 0.5kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 1 x 12V/1A DC, screw connector
