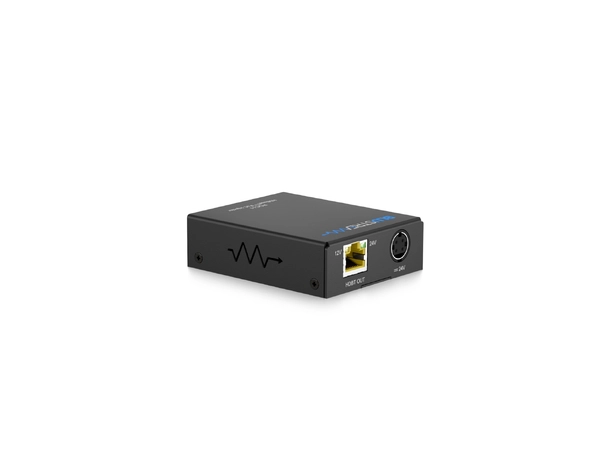

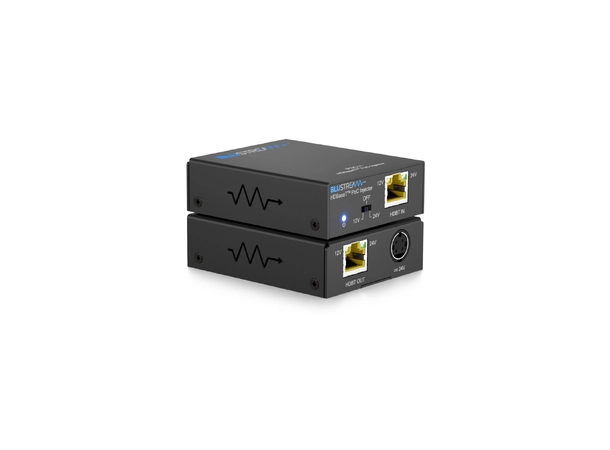

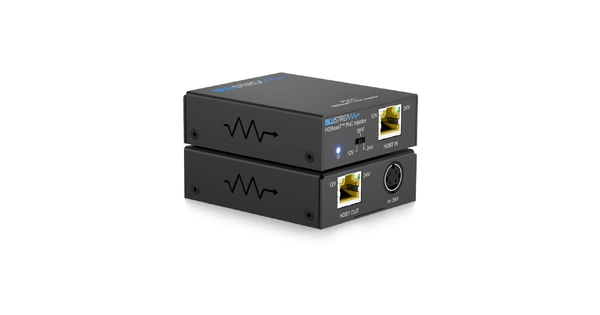

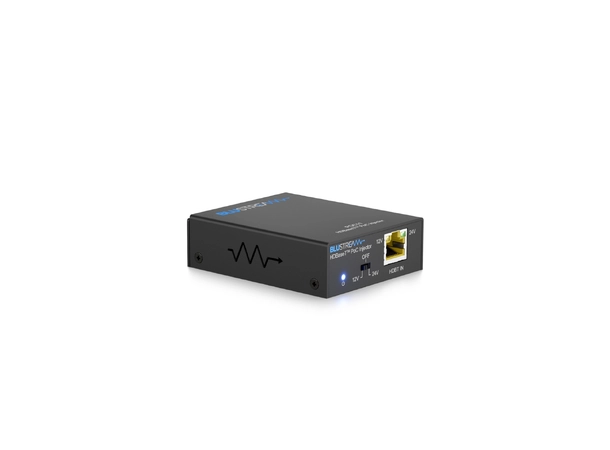

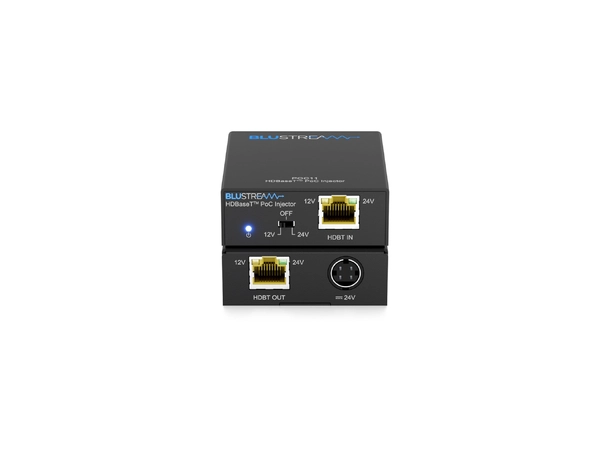

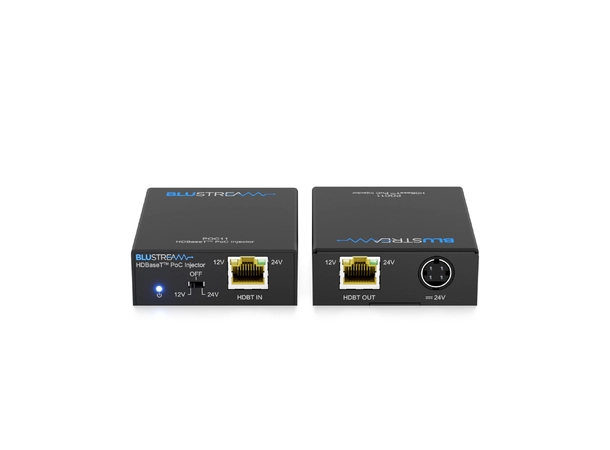

POC11

HDBaseT™ PoC Injector

The POC11 HDBaseT™ PoC injector is designed to send remote power to Blustream HDBaseT products that operate using Power over Cable. When placed within an HDBaseT transmission line, it allows a Blustream HDBaseT Transmitter to be remotely powered via selectable 12V or 24V DC.

Key Features

• In-line PoC (Power over Cable) injector to power Blustream HDBaseT Transmitter products
• Compatible with all Blustream HDBaseT™ video solutions (HDBaseT spec 1.0, 2.0, and 3.0)
• Supports 18Gbps 4K signals, multi-channel audio formats, and HDCP 2.2
• Supports up to 100m cable distance *
• Selectable voltage between 12V or 24V

Note: Cable distance subject to the location of the POC11 and Blustream HDBaseT product being installed. Maximum distance: POC11 to TX: 30m, POC11 to RX: 70m. Please refer to the “PoC Distance Limitations” section for further details.

Compatibility: The POC11 is designed for use with Blustream products and may not work with other HDBaseT extenders on the market.

Specifications

• Video Inputs: 1 x HDBaseT™ RJ45 connection
• Video Outputs: 1 x HDBaseT™ RJ45 connection
• Voltage Selection: 1 x 3-step switch
• Casing Dimensions: 65mm x 80mm x 24mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)
• Power Supply: 24V/1.25A DC 4-pin DIN
