Description
High Definition Video over IP Transmitter. Our Contractor HD Multicast distribution platform allows distribution of AV and control signals over a 100Mbps network.

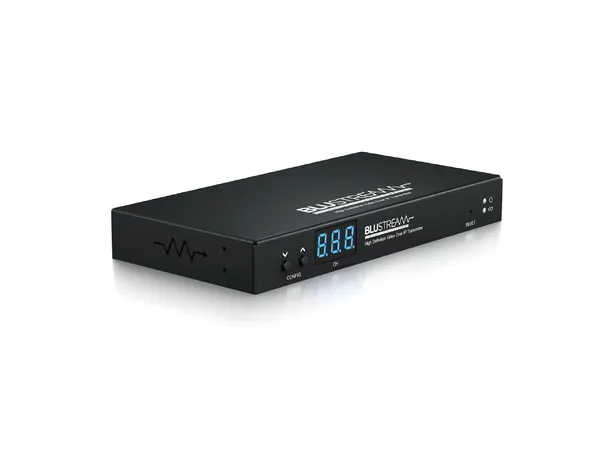

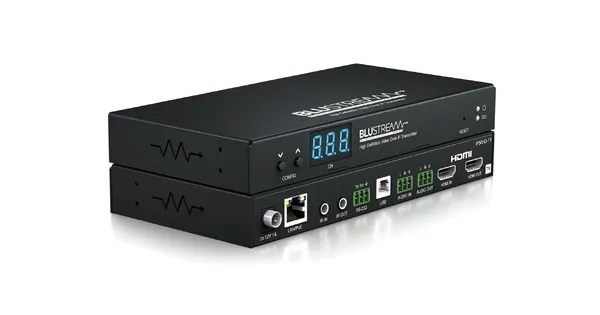

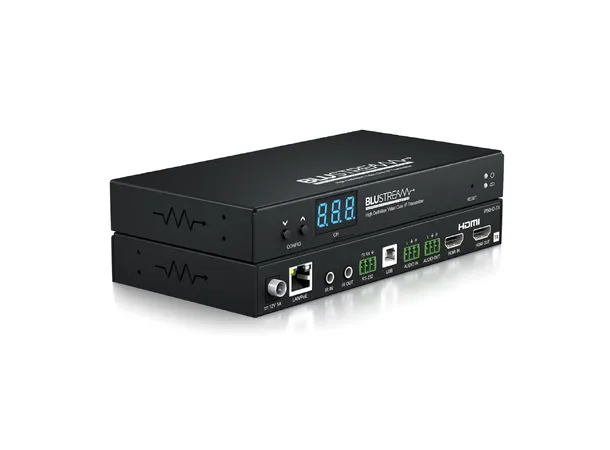

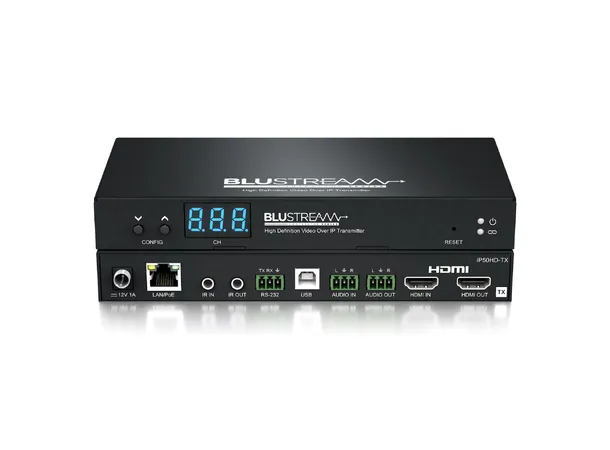

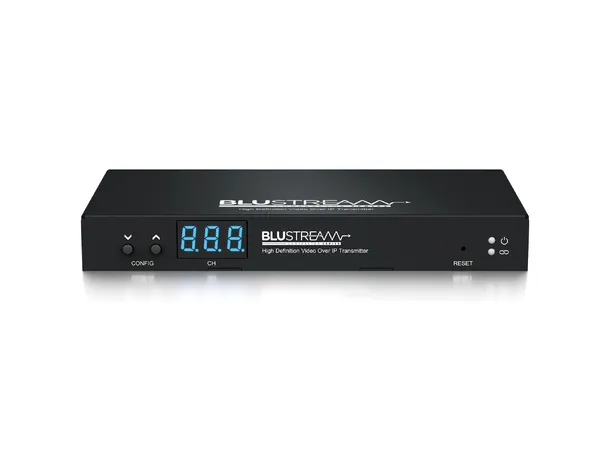

The IP50HD-TX is an industry leading 1080p HDMI transmitter that uses H.265 compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.
Box Contents
1 x IP50HD-TX
1 x IR Receiver
1 x IR Emitter
1 x Mounting Kit
4 x Rubber Feet
Key Features
Advanced HD video, control and KVM over network infrastructure
Extends HDMI up to a distance of 100m over a single CAT cable
Supports unicast transmission over unmanaged networks
Supports multicast transmission for large managed networks
Supports up to 1080p @ 60Hz
Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
Supports PCM 2.0 channel audio only
Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
PoE (Power over Ethernet) to power product from a PoE switch
HDCP1.4 compliant with advanced EDID management
Analogue L/R audio embedding and audio breakout (2ch PCM only)
Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
Features 2 operational modes:
- Matrix distribution (requires 100Mbps network switch)
- One-to-one HDMI extender (no network switch required)
Specifications

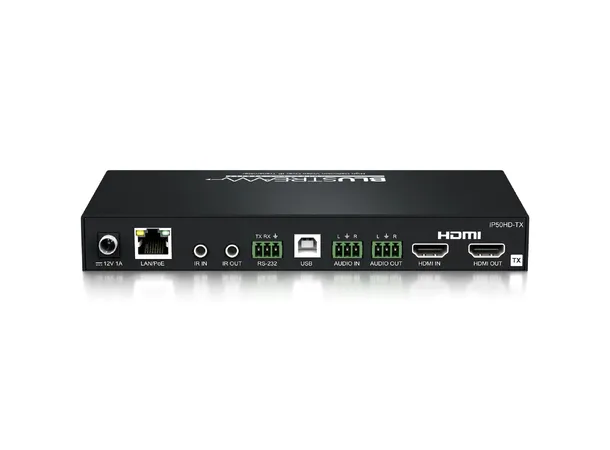

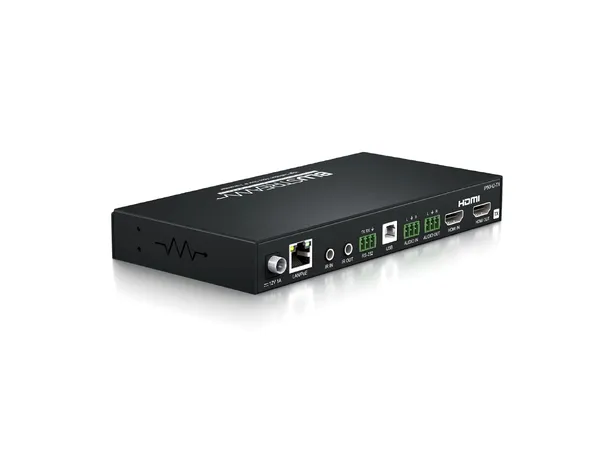

Video input: 1 x HDMI Type A, 19-pin, female, locking
Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, 19-pin, female, locking
Latency: 3 frames (<120ms subject to video compression, frame rate and scaling) No latency on HDMI Loop out
Audio input: 1 x 3-pin Phoenix connector
Audio output: 1 x 3-pin Phoenix connector
Ethernet port: 1 x LAN RJ45 connector
RS-232 serial port: 1 x 3-pin Phoenix connector
USB/KVM Host Port: 1 x USB-Type B
IR input: 1 x 3.5mm stereo jack
IR output: 1 x 3.5mm mono jack
PoE draw: 3.7W (typical), 4.0W (max load)
Mounting kit included
Dimensions (W x D x H): 190mm x 95mm x 25mm
Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
