Description
Our Contractor Series HD distribution platform allows distribution of AV and control signals over a 100Mbps network.

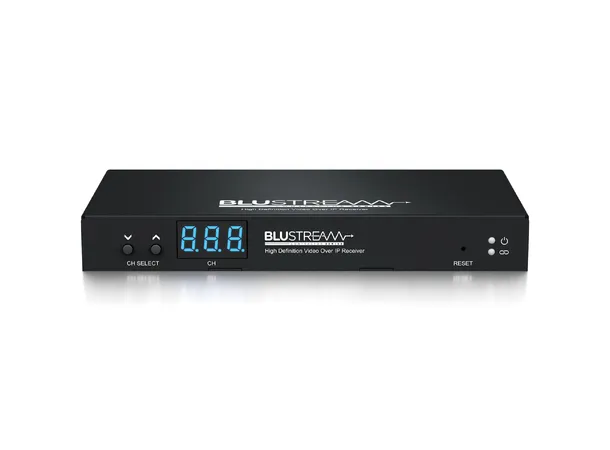

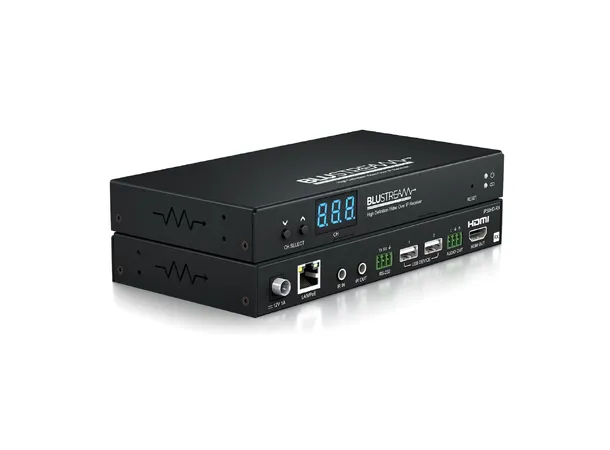

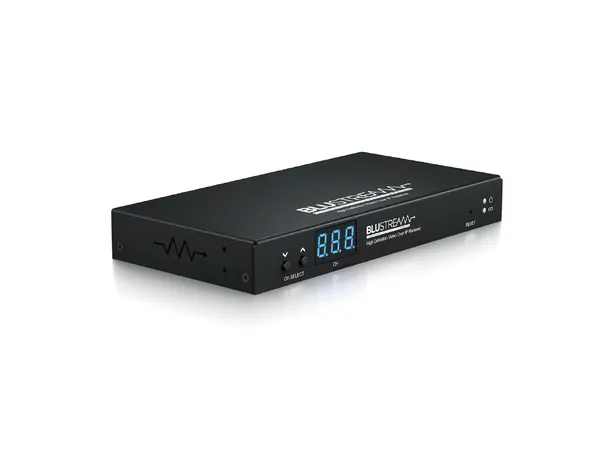

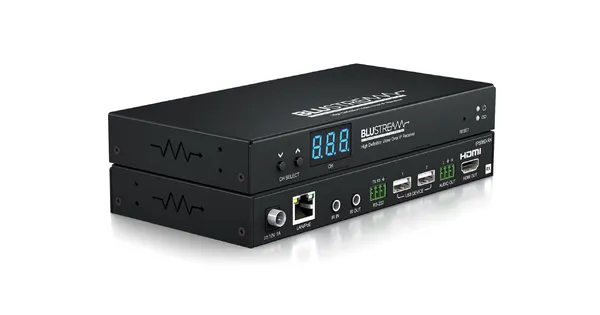

The IP50HD-RX is an industry leading 1080p HDMI video scaling receiver that uses H.265 compression technology to deliver HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The receiver can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.
Box Contents
1 x IP50HD-RX
1 x IR Receiver
1 x IR Emitter
1 x Mounting Kit
4 x Rubber Feet
Key Features
Advanced HD video, control and KVM over network infrastructure
Extends HDMI up to a distance of 100m over a single CAT cable
Supports unicast transmission over unmanaged networks
Supports multicast transmission for large managed networks
In-built video scaler to allow for inclusion of displays with differing resolution capabilities (1080p max)
Supports up to 1080p 60Hz video output
Supports PCM 2.0 channel audio only
Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP1.4 compliant with advanced EDID management
Analogue L/R audio breakout
Local 12V 1A power supply should Ethernet switch not support PoE (not included)
Features 2 operational modes:
- Matrix distribution (requires 100Mbps network switch)
- One-to-one HDMI extender (no network switch required)
Specifications

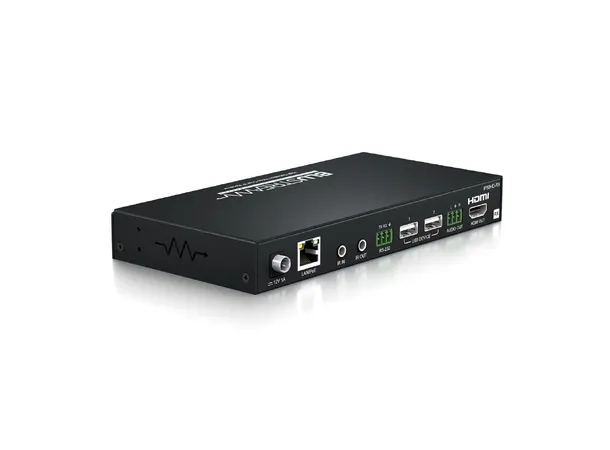

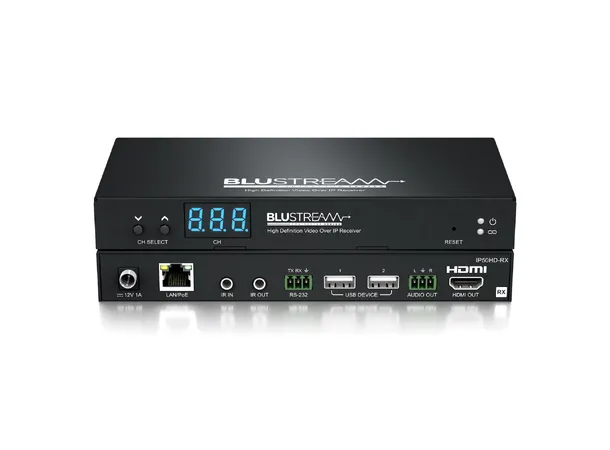

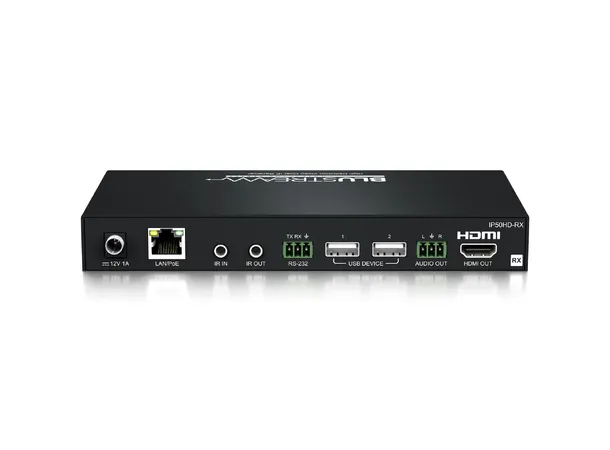

Video Input Connectors: 1 x LAN RJ45 connector,
Video Output Connectors: 1 x HDMI Type A, 19-pin, female, locking
Latency: 3 frames (<120ms subject to video compression, frame rate and scaling)
Audio Output Connectors: 1 x 3-pin Phoenix connector
Ethernet port: 1x LAN RJ45 connector (video extension)
RS-232 serial port: 1 x 3-pin Phoenix connector
USB/KVM Device Ports: 2 x USB-Type A
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
PoE draw: 2.9W (typical), 3.2W (max load)
Mounting kit included
Dimensions (W x D x H): 190mm x 95mm x 25mm
Dimensions Including Connections (W x D x H): 190mm x 100mm x 25mm, without feet
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
