IP300UHD-RX

4K 60Hz 4:4:4 Video over IP Receiver via 1Gb Managed Network

The Blustream IP300 series Multicast distribution platform allows virtually latency-free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network.

Featuring full interoperability with the IP350UHD product line, the IP300UHD-RX is an industry-leading 4K HDMI receiver that uses visually lossless compression technology to deliver 18Gbps HDMI, HDCP2.2, audio, bi-directional IR, RS-232, and USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.

This receiver also features a second RJ45 LAN port for daisy-chaining HDMI signals to further IP300UHD-RX units. With advanced scaling capabilities, it supports legacy displays while maintaining 4K video output for modern systems and allows for video walls to be created. The unit can be powered via PoE or locally, if required.

With multiple configuration options, the Blustream Multicast video over IP solution is ideal for a wide range of installations.

Key Features

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to 100m over a single CAT cable
• SFP port for signal distribution over fibre
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR including Dolby Vision LLM
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio, and video
• PoE (Power over Ethernet) or optional local power supply
• Full 18Gbps scaling capabilities for non-4K/legacy displays
• Analogue L/R audio output supports balanced and unbalanced signals
• LAN loop-out for one-to-many extender mode

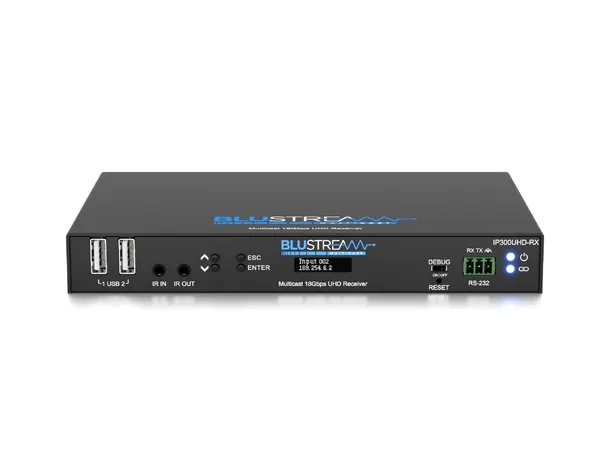

• OLED front panel display for system information and manual configuration
• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
• Four operational modes:
  • Matrix distribution (requires 1Gb network switch)
  • Video wall (requires 1Gb network switch)
  • One-to-one HDMI extender (no network switch required)
  • One-to-many HDMI extender (no network switch required)

Specifications

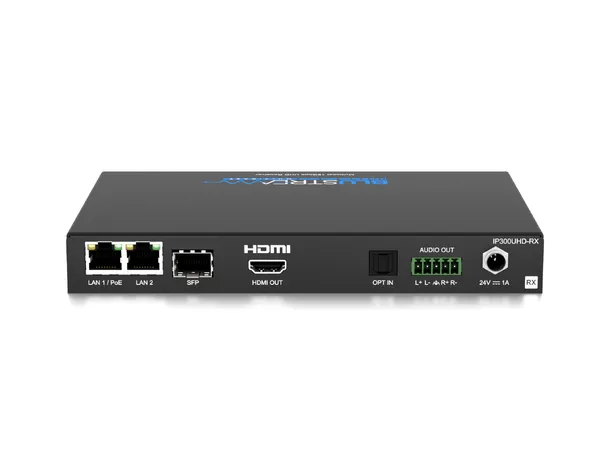

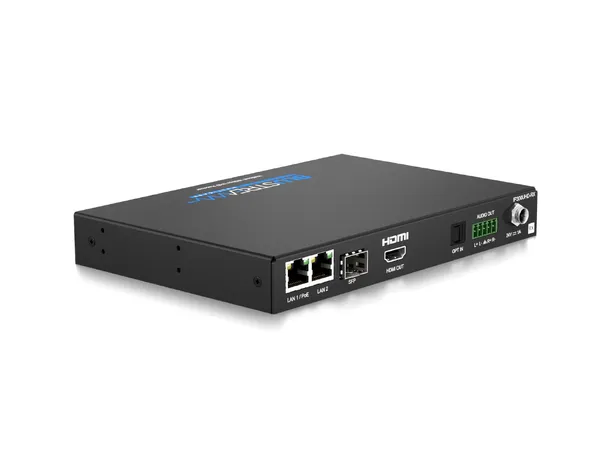

• Video Input: 1 x LAN RJ45 connector, 1 x SFP connector
• Video Output: 1 x HDMI Type A (female), 1 x LAN RJ45 connector
• Audio Input: 1 x Optical (S/PDIF)
• Audio Output: 1 x 5-pin Phoenix connector
• Ethernet Ports: 2 x LAN RJ45 connectors
• Fibre Port: 1 x SFP connector (fibre module not supplied)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• USB/KVM Port: 2 x USB2.0-type B for KVM
• IR Input: 1 x 3.5mm stereo jack
• IR Output: 1 x 3.5mm mono jack
• Dimensions (W x D x H): 190mm x 128mm x 25mm
• Packaging Dimensions (W x D x H): 260mm x 180mm x 55mm
• Unit Weight: 0.75kg
• Shipping Weight: 1kg
• Power Consumption: 9W (max)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: Class 3 IEEE 802.3af PoE or 24V 1A DC PSU
