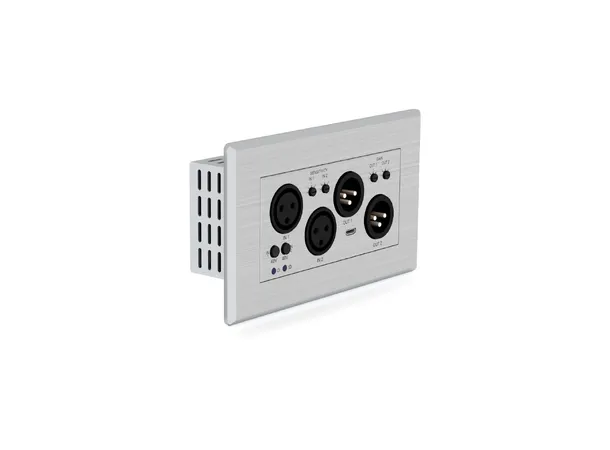

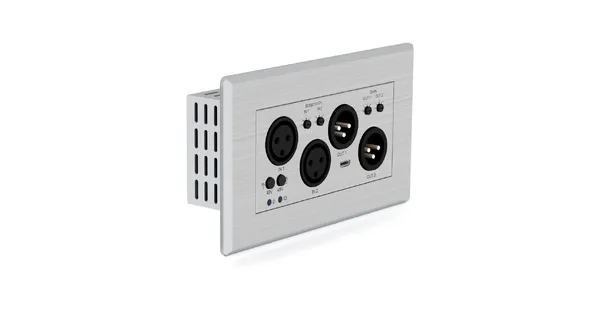

The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system.

The DA22XLR-WP features 2 input channels of balanced / unbalanced / MIC audio with switchable 48v phantom power and 2 output channels of balanced / unbalanced audio.

The DA22XLR-WP is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility.


Key Features

    Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
    Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
    Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
    Switchable 48V Phantom power for each MIC XLR input
    Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
    Adjustable line gain from +18 dBu to -10 dBV for each XLR output
    Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
    Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
    Supports AES67 RTP audio transport
    Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
    Supports power via 12V DC adapter (not included) for when network switch does not support PoE
    Magnetic faceplate surround allowing for both UK & EU backbox compatibility

*Dante® is a registered trademark of Audinate Pty Ltd

Specifications

    Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
    Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector

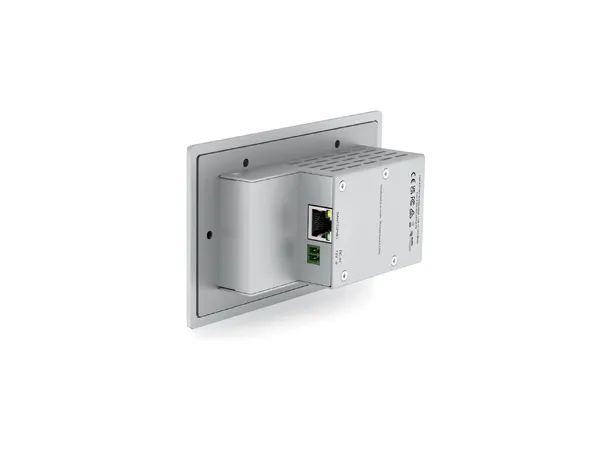

    Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)

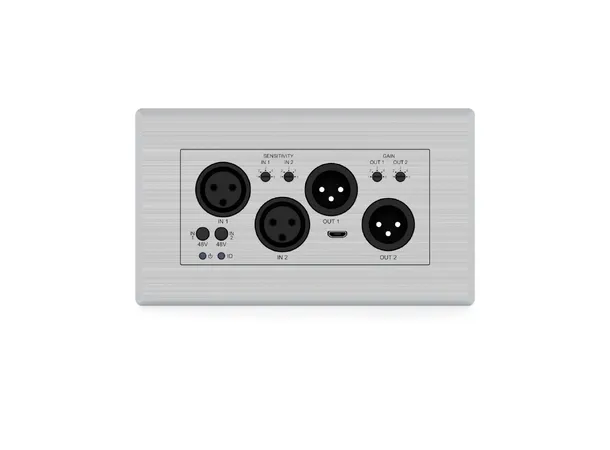

    Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)
    Firmware  Upgrade: 1 x Micro-USB UART port
    Module Dimensions (L x W x H): 136mm x 76mm x 45mm (without faceplate)
    Faceplate Dimensions (L x W x H): 146mm x 86mm x 5mm
    Cut Out Dimensions (L x W x H): 109mm x 50mm x 36mm
    Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
    Backbox Requirements: UK double gang backbox / EU double gang backbox
    Shipping Weight: 0.6kg
    Operating Temperature: 32°F to 104°F (0°C to 40°C)
    Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
    Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector
