Description

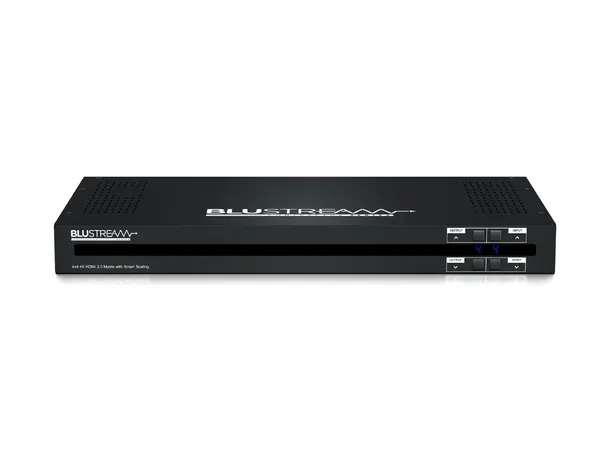

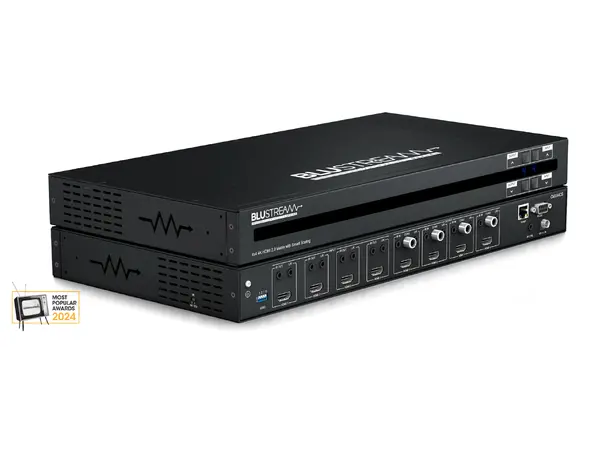

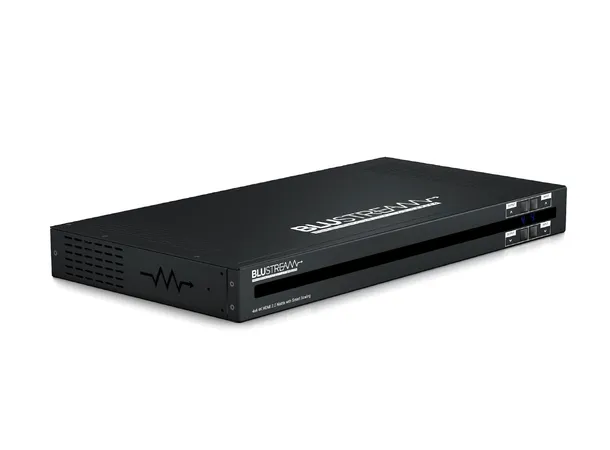

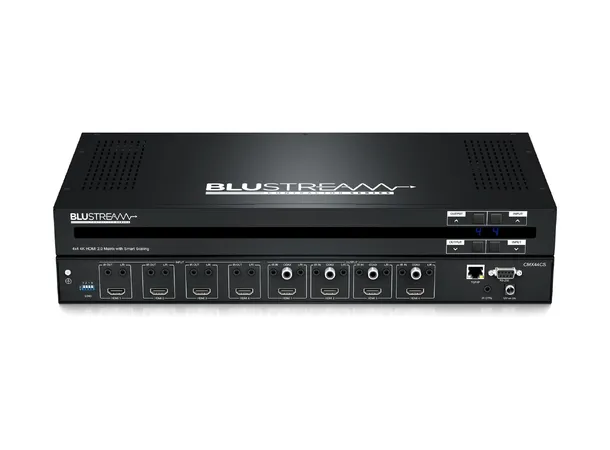

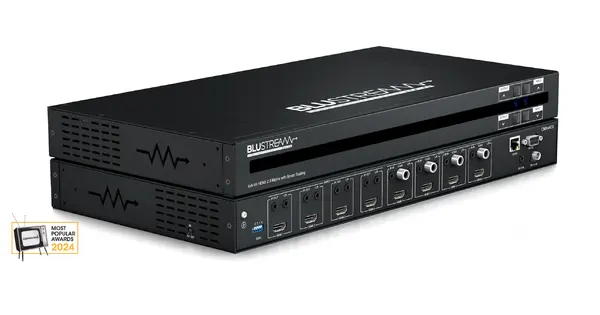

Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.
The CMX44CS supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays.
This enables all sources to be viewed as required within a matrix configuration.
The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion.
The 4-way matrix also includes audio breakout and advanced EDID management.
Box Contents
1x CMX44CS
1x 12V/2A DC power supply
1x Remote control
4x IR emitter
5x IR receiver
1x Rack mounting kit
1x Quick Reference Guide
Key Features
Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
Supports HDMI2.0 18Gbps specification including HDR
Supports up to 4K UHD 60Hz 4:4:4
Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
Control via front panel, IR, RS-232, TCP/IP and Web GUI
IR routing
Supplied with Blustream 5V IR receivers and emitters
3rd Party drivers available for all major control brands
Advanced EDID management
HDCP2.2 compliant
1U Design for 19" rack mount integration - Mounting kit included

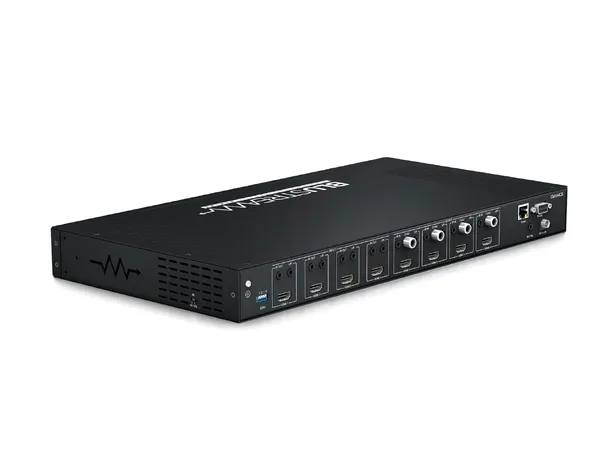

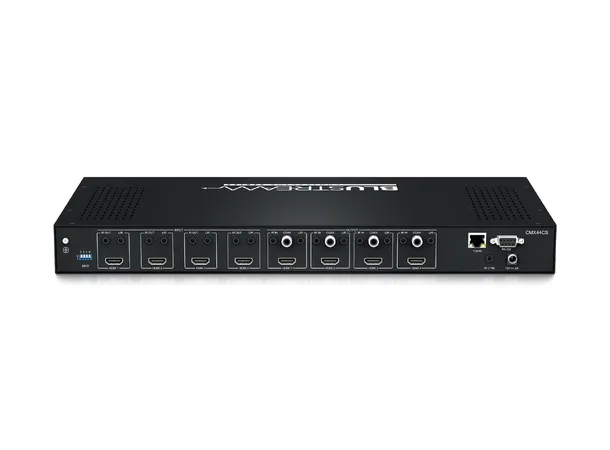

Specifications
Video Input Connectors: 4x HDMI Type A, 19-pin, female, locking
Video Output Connectors: 4x HDMI Type A, 19-pin, female, locking
Audio Output Connectors: 4x RCA (S/PDIF), 4x Analogue audio L/R (3.5mm stereo Jack)
Audio Input Connectors: 4x Analogue audio L/R (3.5mm stereo Jack)
RS-232 serial port: DB-9, female
IR Input ports: 5x 3.5mm stereo jack
IR Output ports: 4x 3.5mm mono jack
Mounting kit included
Casing Dimensions (WxDxH): 440mm x 225mm x 44mm
Dimensions Including Connections (W x D x H): 440mm x 231mm x 50mm
Shipping Weight: 2.3kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 12V/2A DC
19" Rack mounting kit included
