Specifications
Source:
• 40W Warm White LED Engine
• 50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
• >98CRI 900 Total Lumens
• 3000K Color Temperature
Effects:
• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes
Gobos:
• Supports “E” Size
• GOBO Holder is included
• GOBOs are sold separately
Control:
• (3) DMX Channel Modes (1 / 3 / 4)
• Adjustable Refresh Rates (900-1500, 25,000 Hz)
• 4 Button Control Panel
• OLED Menu Display
• RDM (Remote Device Management)

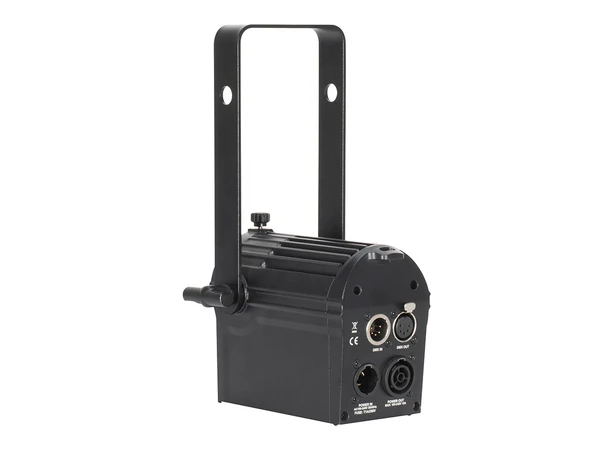

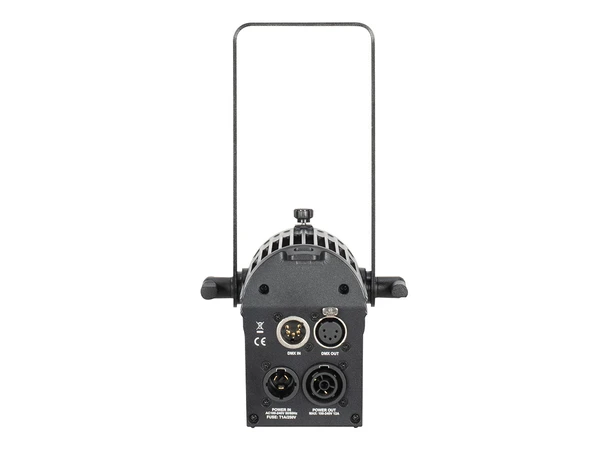

Connections:
• Locking 5pin XLR Connector In/Out
• Locking Power Connector In/Out
Dimensions & Weight:
• Length: 153mm (Without lens)
• Width: 144mm
• Height: 273mm
• Weight: 1.65 kg
Electrical & Thermal:
• Convection Cooled
• AC 100-240V - 50/60Hz
• 45.7W Max Power Consumption @ 230V
• Power Linking: 53pcs Max @230V
• Minimum and Maximum Ambient Temperatures: -10° to 45°C
Approvals & Ratings:
• CE | cETLus (Pending) | IP20
Included items:
• (1) Locking Power Cable
Accessories:
• EP Mini Lens 1530 (15° - 30° Manual Zoom Lens)
• EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)
