Specifications
Loading Capacity:
• 6.5 million pixels
Maximum pixel width & height:
• Width up to 10,240 pixels
• Height up to 8,192 pixels
Layers:
• 3x 4K×1K
Inputs:
• 2x HDMI1.4
• 1x DVI (HDMI 1.4)
• 1x 3G-SDI
• 1x OPT1

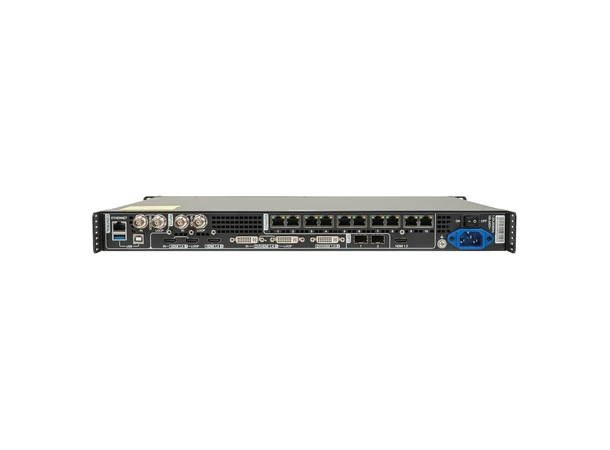

Outputs:
• 10x Ethernet Ports for LED Screen connection
• 1x HDMI (Monitoring or Output)
• 1x HDMI1.4 LOOP
• 1x DVI LOOP
• 1x 3G-SDI LOOP
• 2x OPTICAL for LED Screen connection
Control:
• GENLOCK (IN & LOOP):Yes
• 1x Ethernet Port
• 1x USB-A
• 1x USB-B
• Low Latency: Yes
• Input Source Backup: Yes
• Bypass Mode: Yes
• Fiber Converter Mode: Yes
Electrical & Environmental:
• Power connector 100–240V~, 1.5A, 50/60Hz
• Rated power consumption 28 W
• Temperature –10°C to +60°C
• Humidity 20% RH to 90% RH, non-condensing
Dimensions & Weight:
• Dimensions 483.6 mm × 351.2 mm × 50.1 mm
• Weight 4 kg
Included accessories:
• 1x Power cord
• 1x HDMI to DVI cable
• 1x USB cable1x Ethernet cable
• 1x HDMI cable
• 1x Quick Start Guide
• 1x Certificate of Approval
• 1x Customer Letter
• 1x Safety Manual
