ADJ 40 HEX Panel IP

Versatile Indoor and Outdoor Lighting Solution

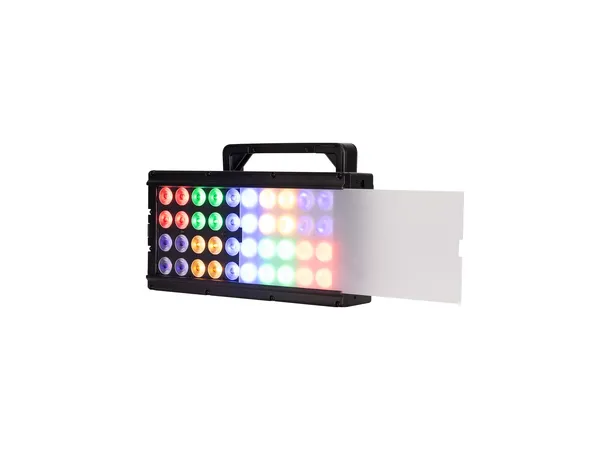

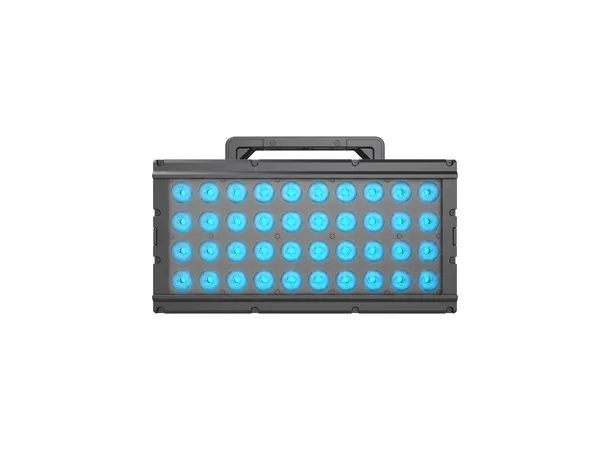

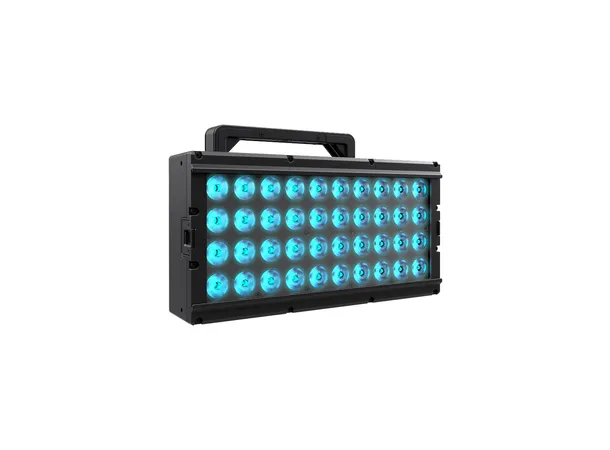

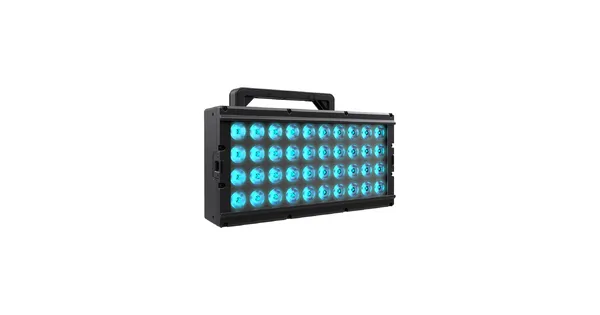

The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.

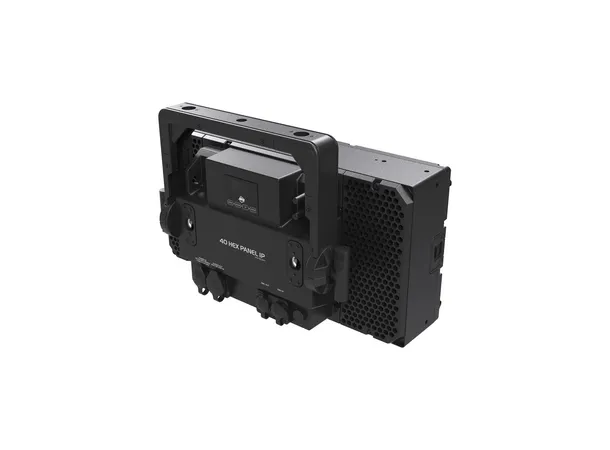

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.

Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. The Aria X2 wireless management system is built-in to the fixture for over-the-air firmware/software updates.

Specifications

Light Source:

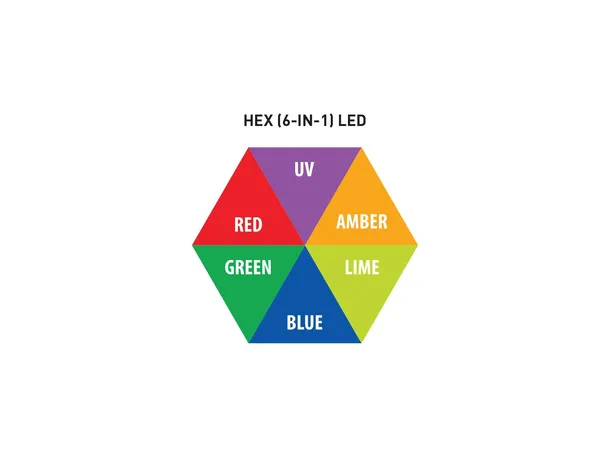

• LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
• Beam Angle: X = 28.61°, Y = 23.72°
• Field Angle: X = 50.82°, Y = 44.95°
• Lumens: 19,590

Features:

• IP65 rated - protects from dust, sand, moisture, water
• Aria X2 Management System
• All-metal construction with black housing
• Includes heavy-duty bracket
• Flicker-free for film and broadcast
• Linear variable white temperature control

Construction:

• Display: OLED display with function buttons
• All-metal heavy-duty housing built to last in outdoor or touring applications

Control:

• 24 DMX Control Modes
• 4 Control Groups: 1 / 2 / 5 & 10 Groups
• 0-100% Dimming + smooth 16-bit Dimming
• 5 Dimming Curve Modes
• Control Mode: DMX512, RDM (Remote Device Management)
• LED Refresh Rate: Multiple settings

Connections:

• Data: IP65 Locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 492W @220V
• Max Power Link: 4pcs @230V
• Fuse Protected: T4A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Dimensions (LxWxH): 417 x 296.8 x 212mm
• Weight: 11.15 kg

What's Included:

• 1 x IP65 Locking Power Cable
• 1 x Frost Filter
• 1 x Safety Cable

Optional Accessories:

• 180mm Omega Bracket
• JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP)
• JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
• JPFX60X1LF (60X1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)

Approvals and Ratings:

• IP65
