Mirage Par H IP LED Fixture

The Mirage Par H IP LED fixture is a versatile, high-performance lighting solution, perfect for events, installations, and stage productions. Equipped with five 20W Hex Color RGBAL+UV LEDs, it delivers a dynamic range of color, including lime and UV for unique lighting effects. With an adjustable white color temperature from 2,700K to 9,900K, the Mirage Par H IP allows access to a massive gamut of colors.

This light can be powered via wall outlet or its rechargeable lithium-ion battery, providing user-selected 5 to 20 hours of operation. Control options are expansive, including DMX512, Aria X2 wireless system for over-the-air firmware/software updates, Bluetooth, RDM, and an IR remote. With a robust IP65-rated housing, it is weather-resistant, making it ideal for outdoor or indoor use.

Advanced features include variable refresh rates (900Hz to 25K), six dimming modes, four dimming curves, built-in programs, and electronic strobing and full dimming, giving users complete control over intensity and effects.

The Mirage Par H IP is both compact and rugged, ensuring easy setup, striking looks, and transport. This versatile LED Par is designed for lighting professionals who need reliability, color versatility, adaptable power options, and all-weather protection in one durable package.

Specifications

Features:

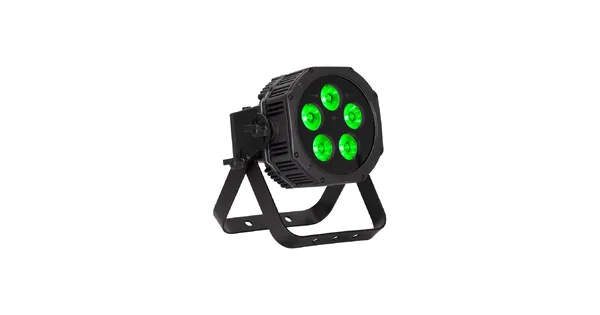

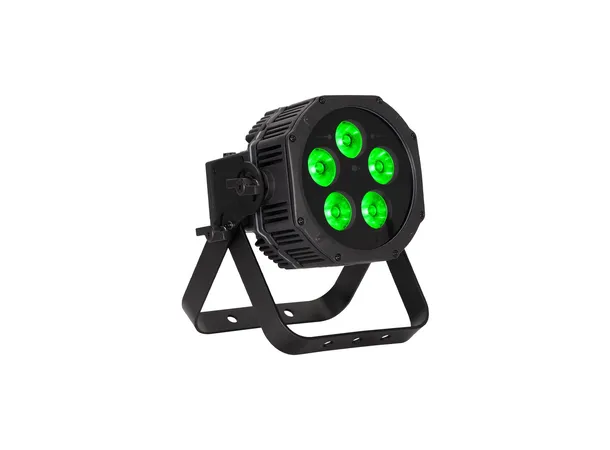

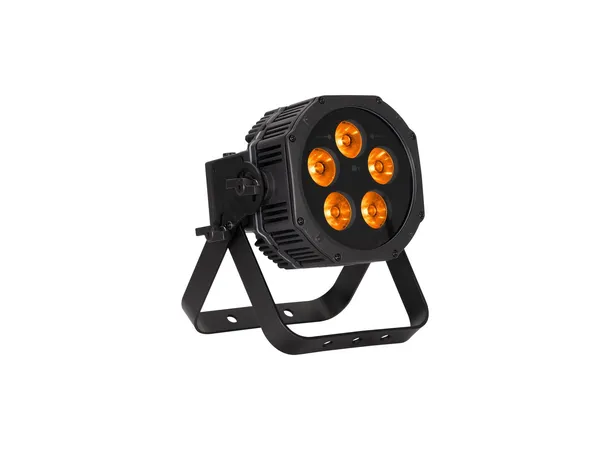

• 5 Pixel, Hex Color LED (RGBAL+UV) LED Par
• Battery or Wall Powered
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours
• Built-In Programs
• Variable White Color Temperature Control (2,700K ~ 9,900K)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.3Hz ~ 11Hz)
• Electronic Dimming

Source:

• (5) 20W Hex Color RGBAL+UV LEDs
• 50,000 Hour Average Life (may vary based on usage conditions)

Optical:

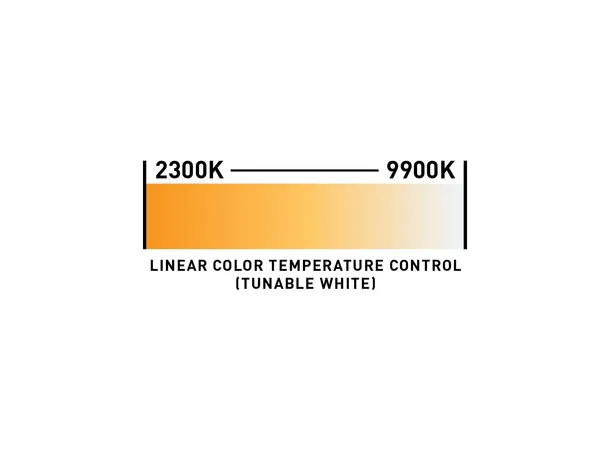

• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle

Physical:

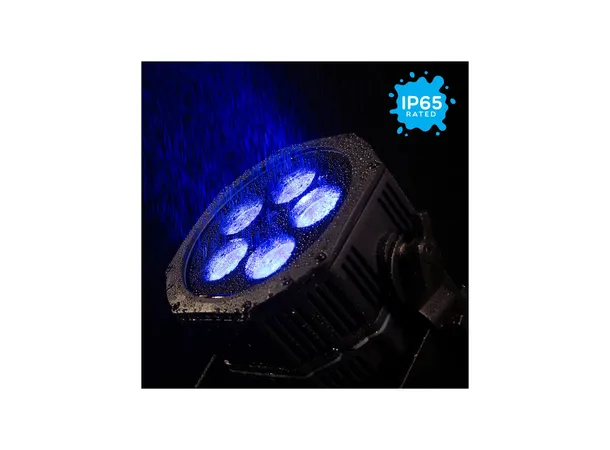

• IP65 Housing

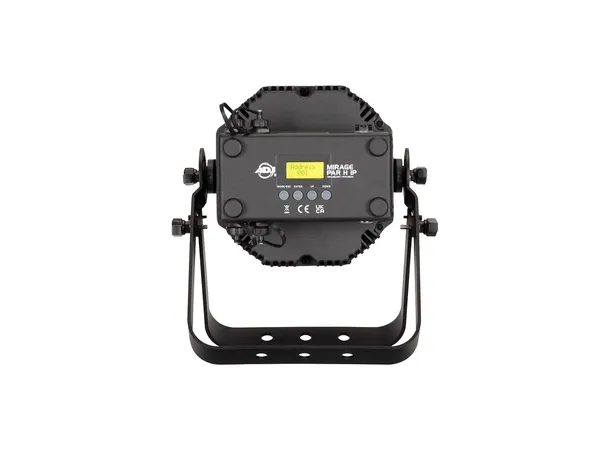

• Digital display

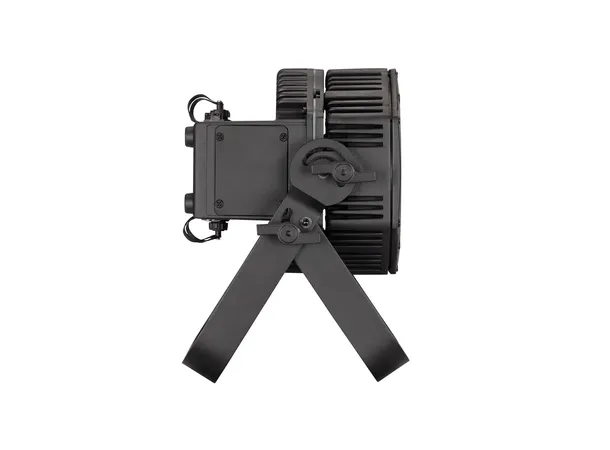

• Adjustable, hanging / kick stand bracket

Control:

• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible

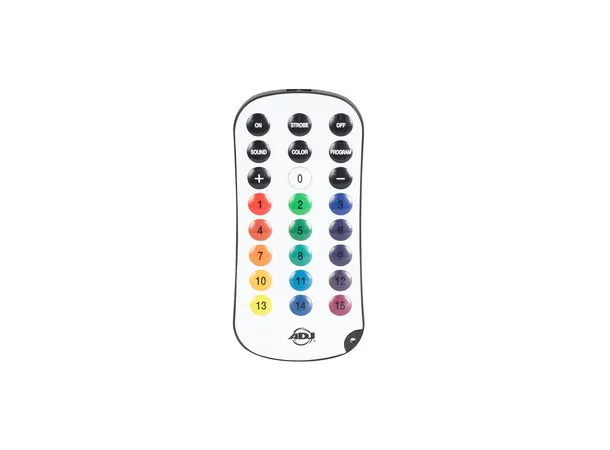

• IR (Includes UCIR24 wireless remote)
• (6) DMX Channel Modes (5, 6, 9A, 9B, 15 & 17 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

Connections:

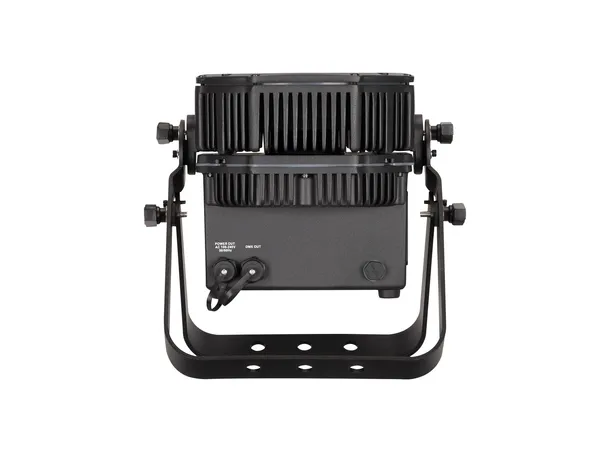

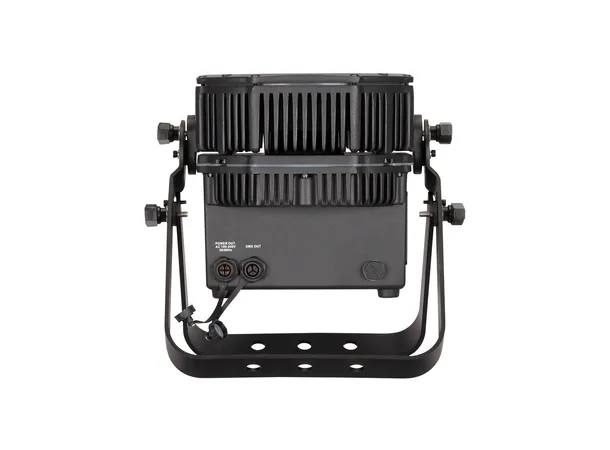

• 4-pin proprietary Power In/Out connections
• 3-pin proprietary IP65 DMX In/Out connections

Dimensions & Weight:

• Dimensions: 282mm x 269mm x 265mm
• Weight: 5.4 kg

Power:

• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 28 pieces @ 230VAC

Battery:

• Rechargeable Lithium-ion
• Battery Capacity: 6,600mAh
• Battery Voltage: 22.2V
• Charge Time: 5 Hours (to full)
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5-hour duration will operate at Full Output when fully charged.
• Battery Cycles: 500

Thermal:

• Ambient Operational Temperature: -20° C to 45° C
• Storage Temperature: -30° C to 45° C

Certifications & IP Rating:

• IP65

Included Accessories:

• (1) Outdoor Locking Power Cable
• (1) Floor / Mounting Bracket
• (1) UCIR24 Remote
